DC/DC PRODUCTS
Isolated DC/DC Converter

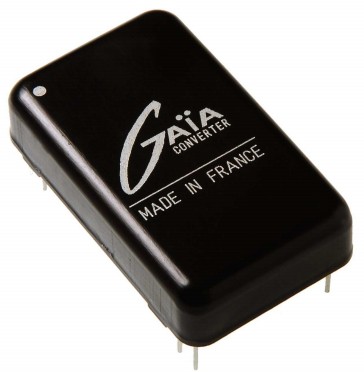

04W Series : The thinnest DC/DC on the market
- Standard DIL24 low profile package : 1.25" x 0.75" x 0.25",
- Input range : 4.5-5.5V, 9-36V, 16-40V,
- Outputs : single, bi and triple : 3.3V, 5V, 12V, 15V,
- Soft start, permanent short circuit protection,
- No optocoupler for high reliability
10W Series : The smallest DC/DC on the market
- 1 x 1.5 low profile package : 1" x 1.5" x 0.3",
- Input range : 4.5-5.5V, 9-36V, 16-40V,
- Outputs : single, bi and triple : 3.3V, 5V, 12V, 15V, 24V,
- Soft start, permanent short circuit protection,
- Nop optocoupler for high reliability.
18W Series : The smallest footprint on the market2
- 1 x 1.5 package : 1" x 1.5" x 0.65",
- Input range : 4.5-5.5V, 9-36V, 16-40V,
- Outputs : single : 3.3V, 5V, 12V, 15V,
- Soft start, permanent short circuit protection,
- No optocoupler for high reliability.
20W Series : The smallest DC/DC on the market
- Standard 2 x 2 package : 2" x 2" x 0.5",
- Input range : 4.5-5.5V, 9-36V, 16-40V,
- Outputs : single, bi and triple : 3.3V, 5V, 12V, 15V,
- Soft start, permanent short circuit protection,
- No optocoupler for high reliability.
25W Series : The smallest DC/DC on the market
- Standard 2 x 2 package : 2" x 2" x 0.5",
- Input range : 9-36V, 16-40V,
- Outputs : single, bi and triple : 3,3V, 5V, 12V, 15V,
- Soft start, permanent short circuit protection,
- No optocoupler for high reliability.
26W Series : The smallest DC/DC on the market
- Standard 2 x 2 package : 2" x 2" x 0.4",
- Input range : 9-36V, 16-40V,
- Outputs : single : 3.3V, 5V, 12V, 15V,
- Soft start, permanent short circuit protection,
- Trim, sense, synchronisation, load sharing functions,
- No optocoupler for high reliability.
30W Series : The only configurable DC/DC on the market
- 3 x 2 package : 3.25" x 2.2" x 0.3",
- Input range : 9-36V, 16-40V,
- Outputs : up to 6 outputs and 3 independant regulations,
- Soft start, permanent short circuit, thermal protections,
- Trim, sense functions.
35W Series : Wide input range
- Standard 3 x 2 package : 3" x 2" x 0.5",
- Input range : 9-36V, 16-80V,
- Outputs : single, bi and triple : 3.3V, 5V, 12V, 15V,
- Soft start, permanent short circuit protection,
- Trim, sense, synchronisation functions,
- No optocoupler for high reliability.
75W Series : Ultra-wide input range
- Standard quarter brick package : 2.3" x 1.4" x 0.5",
- Input range : 9-45V, 16-80V, 155-480V
- Outputs : single : 3.3V, 5V, 12V, 15V, 24V, 28V
- Soft start, overcurrent, overvoltage, thermal protections,
- Trim, sense, synchronisation,
- No optocoupler for high reliability.
100W Series : Ultra-wide input range
- Standard 3 x 2 package : 3" x 2" x 0.5",
- Input range : 10.7-100V,
- Outputs : single : 3.3V, 5V, 12V, 15V, 26V
- Soft start, permanent short circuit protection,
- Trim, sense, synchronisation functions,
- No optocoupler for high reliability.
150W Series : Ultra-wide input range
- Standard half brick package : 2.4" x 2.3" x 0.5",
- Input range : 9-45V, 16-80V, 120-480V
- Outputs : single : 3.3V, 5V, 12V, 15V, 24V, 28V
- Soft start, overcurrent, overvoltage, thermal protections,
- Trim, sense, synchronisation, load sharing functions,
- No optocoupler for high reliability.
155 Watts series : High input series
- Standard quarter brick package : 2.3" x 1.4" x 0.5",
- Input range : 155-480V
- Outputs : single : 3.3V, 5V, 12V, 15V, 26V
- Soft start, overcurrent, overvoltage, thermal protections,
- Trim, sense, synchronisation,
- No optocoupler for high reliability.
200W Series : Unique 3D heat path
- Dimension : 2.9" x 1.9" x 0.5",
- Input range : 9-60V, 14-100V
- Outputs : single : 3.3V, 5V, 12V, 15V, 24V
- Soft start, overcurrent, overvoltage, thermal protections,
- Trim, sense, synchronisation, load sharing functions,
- No optocoupler for high reliability.
EMI Filters
EMI Filter 2A : EMI Filters for MIL-STD-461C/D/E/F
- CE 03/CE 102 : Emission requirements
- CS 01/CS 101 : Susceptibility requirements
- CS 02/CS 114 : Susceptibility requirements
EMI Filter 10A : EMI Filters for MIL-STD-461D/E/F
- CE 102 : Emission requirements
- CS 101 : Susceptibility requirements
- CS 114 : Susceptibility requirements
EMI Filter 20A : EMI Filters for MIL-STD-461D/E/F
- CE 102 : Emission requirements
- CS 101 : Susceptibility requirements
- CS 114 : Susceptibility requirements
Hold-up Modules
Hold-up 50W : Unique Product for Hold-Up Solution
- Unique product for hold-up solution
- Reduce capacitance size by 80%
- High effi ciency (98%)
- Power range : from 4 W to 50 W
- Compatible with 9-36 or 16-40 Vdc converter
- Include monitoring signals
- Programmable inrush current limitation
Transient Protection Modules
50W Series : Pre-Regulator for Brown-out and Transient
- Transient suppressor module : 60V, 80V, 100V
- Spike suppressor module : 600V
- Extended operation for voltage drop out
- Dimensions : 1.5" x 1" x 0.3"
100W Series : Limitor DEF-STAN-61-5 & MIL-STD-1275
- Transient suppressor module : 202V
- Spike suppressor module : 600V
- Dimensions : 1.5" x 1" x 0.5"
300W Series : Limitor MIL-STD-1275
- Transient suppressor module : 100V
- Spike suppressor module : 600V
- Dimensions : 1.5" x 1" x 0.5"
AC/DC PRODUCTS
Isolated AC/DC PFC Converter
35W Series : AC/DC Power factor corrected module
- Isolated Power Factor Corrected Module,
- Input range : 71-180 VAC / 400Hz (variable frequency : 360-800Hz),
- Output : dual 2 x 17V,
- Low input current harmonic distorsion < 10%,
- Dimensions : 3" x 2" x 0.5".
Non Isolated AC/DC PFC Converter
150 Watts series : AC/DC Power factor corrected module
- Non Isolated Power Factor Corrected Module,
- Input range : 71-180 VAC / 400Hz (variable frequency : 360-800Hz),
- Output : single output 375V,
- Low input current harmonic distorsion < 10%,
- Individual harmonic current compliant
- Dimensions : Standard Half brick 2.4" x 2.3" x 0.5".
350W Series : AC/DC Power factor corrected module
- Non Isolated Power Factor Corrected Module,
- Input range : 71-180 VAC / 400Hz (variable frequency : 360-800Hz),
- Input range : 71-180 VAC / 60Hz
- Input range : 85-265 VAC / 50/60Hz
- Output : single output 375V,
- Low input current harmonic distorsion < 10%,
- Individual harmonic current compliant
- Dimensions : Standard Half brick 2.4" x 2.3" x 0.5".
