法国Piezotech压电薄膜

Piezotech

PIEZOTECH现在有能力通过最近的一项专利合成新的聚合物电致伸缩,PIEZOTECH提出了多功能前所未有和功能实现。P(VF2-VF3-CFE)和P(VF2-VF3-CTFE)三元共聚物提供范围广泛的应用程序执行器和电容器。PIEZOTECH提供溅射和蒸发系统以及新功能对压电聚合物导电聚合物沉积。


法国PiezoTech压电聚合物产品
压电和热释电聚合物,薄膜、仪表和传感器和张弛振荡器和电致伸缩的聚合物。 压电聚合物和薄膜 12*12 cm

Product name

Piezotech PVDF sheet

Piezotech FC sheet

Piezotech RT T sheet

Piezotech RT F sheet

Polymer base

PVDF

P(VDF-TrFE)

P(VDF-TrFE-CTFE)

P(VDF-TrFE-CFE)

Thicknesses (μm)

9 / 25 / 40

10 / 20 / 40

10 / 20 / 40

10 / 20 / 40

Un-poled

Available

Not concerned

Poled

Available

Not concerned

Metallized Cr/Al

Available

Metallized Cr/Au

Available

产品选型参照表

Piezotech PVDF Sheets

Size(μm):9-25-40

Un-poled

Piezotech FC sheets - P(VDF-TrFE)

Size(μm):10-20-40

Un-poled
Poled Poled
Poled and metalized Cr/Al Poled and metalized Cr/Al
Poled and metalized Cr/Au Poled and metalized Cr/Au

Piezotech RT T sheets - terpolymer P(VDF-TrFE-CTFE) Size (μm):10-20-40

Annealed

Piezotech RT F sheets - Terpolymer P(VDF-TrFE-CFE) Size(μm):10-20-40

Annealed
Metalized Cr/Al Metalized Cr/Al
Metalized Cr/Au Metalized Cr/Au
Piezotech


Piezotech 导电活性聚合物
Piezotech FC P(VDF-TrFE)
Piezotech RT P(VDF-TrFE-CTFE) or P(VDF-TrFE-CFE)
  • Low power consumption : external power source unnecessary
  • Good mechanical properties
  • Wide frequency range
  • Transparency
  • Chemical resistance
  • High dielectric strength
  • High deformation (directly proportionnal to the applied electric field squared E )
  • High elastic energy
  • High stress

Product name

Typical TrFE content (in mol %)

Piezotech FC 50

Piezotech FC 45

Piezotech FC 30

Piezotech FC 25

Piezotech FC 20

50

45

30

25

20

Product name

Termonomer



Piezotech RT TS

Piezotech RT FS





CTFE

CFE







产品选型参照表
Piezotech FC Copolymer P(VDF-TrFE) Piezotech RT-TS Terpolymer P(VDF-TrFE-CTFE)

Vinylidene fluoride - trifluoroethylene copolymer
Standard compositions (% mol) /
Powder form: 80/20, 70/30, 75/25, 55/45, 50/50

Chlorotrifluoroethylene, Vinylidene fluoride and Trifluoroethylene terpolymers
Standard Composition / powder form

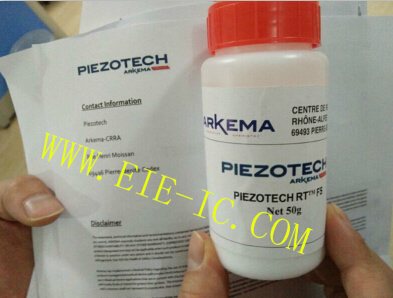

Piezotech RT-FS Terpolymer P(VDF-TrFE-CFE)
Chlorofluoroethylene, Vinylidene fluoride and Trifluoroethylene terpolymers
Standard Composition / powder form


Piezotech electroactive inks

Grade

Piezotech ink I

Piezotech ink L

Piezotech ink H

Piezotech ink P

Ink-jet

spin-coating

Slot-die

spin-coating

Solvent-casting

screen-printing

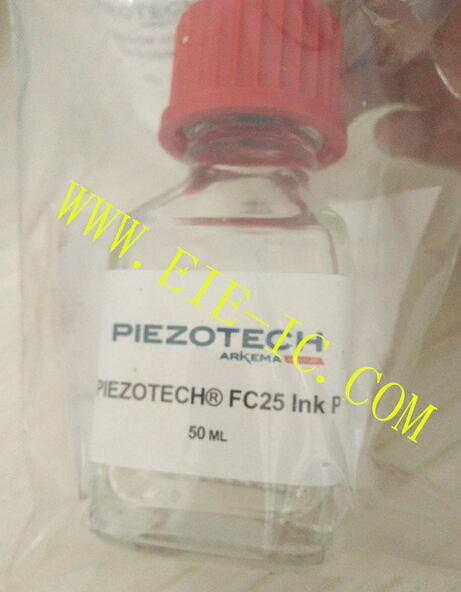

Piezoelectric ink (Base polymer resin: Piezotech FC 25)

Product name

Piezotech FC25 ink I

Piezotech FC25 ink L

Piezotech FC25 ink H

Piezotech FC25 ink P

Electrostrictive and high-k ink (Base polymer resin: Piezotech RT TS)

Product name

Piezotech RT T ink I

Piezotech RT T ink L

Piezotech RT T ink H

Piezotech RT T ink P

Piezotech




Piezotech PVDF gauges

  • High reproducibility
  • Rapid response (nanoseconds)
  • Large stress range (kPa to GPa)
  • Sensitivity (4μC/cm 2 for 10GPa)
  • Flexibility at minimal thicknesses

规格

型号

Basic PVDF Sensor area with parallel lead

S_25

S_25 PVDF Sensor with attached connector

S_25C

S_25C sensor with polyester protection on both sides

S_25CP

S_25CP PVDF sensor electrically shielded

S_25CPB
