HVM Technology, IncHVM电源专业于微型高压电源转换器,HVM Technology成立于2004年,是一家用于夜视图像增强器的专业多输出高压直流至直流转换器的生产商。


hvm电源


DC to DC Converters

hvm

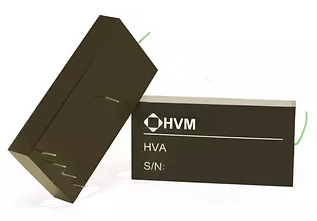

Zero-Crossing Bi-Polar High Voltage Amplifier
  • Easy to Use, No External Components Required

  • Bipolar, Zero-Crossing HV Output

  • Current Sourcing and Sinking

  • Fast Response

  • Excellent Load and Line Regulation

  • 5V or 12V Input Models Available

  • Miniature PC Board Mountable Package

  • ±1kV, ±3kV, and ±6kV Models Available

  • Wide Operating Temp Range (-40°C to +60°C)

Precision Regulated HV DC/DC Converter
  • Models up to 10kV @1W

  • Sub-Miniature Case Size (.85”x.85”x.6”)

  • 5V Operation

  • AdjustableOutput Proportional to 0 - 5V Programming Input

  • Tight Output Regulation

  • Very Low Quiescent Current

  • Output Current Limiting

  • Output Voltage and Current Monitors

  • Wide Operating Temp (-55C to +70C)

HVM
Precision HV DC/DC Converter
  • Ultra-Miniature Case Size (0.5” x 0.5” x 0.5”)

  • High Impedance Programming Input (10kΩ)

  • Extremely Low Quiescent Current (5mA typical)

  • No External Components Required

  • PCB Mountable

  • Low Ripple and EMI/RFI

  • High Input/Output Isolation

  • Wide Operating Temp Range (-55°C to +70°C)

  • Available in positive or negative outputs

High Voltage DC to DC Converter
Proportional to the Output
  • Ultra-Miniature Case Size (0.5” x 0.5” x 0.5”)

  • High Impedance Programming Input (10kΩ)

  • Extremely Low Quiescent Current (5mA typical)

  • No External Components Required

  • PCB Mountable

  • Low Ripple and EMI/RFI

  • High Input/Output Isolation

  • Wide Operating Temp Range (-55°C to +70°C)

  • Available in positive or negative outputs

hvm
Precision Regulated HV DC/DC Converter
  • Ultra-Miniature Case Size (.45”L X .35”W X .37”H)

  • Surface Mountable Package

  • 100mW Output Power Capability

  • Extremely Tight Output Regulation and Stability

  • High Impedance Programming Input (>100kΩ)

  • Low Quiescent Current

  • No External Components Required

  • Extremely Low Ripple and EMI/RFI

  • Wide Operating Temp Range (-55°C to +70°C)

HVM
High-Precision Regulated HV DC to DC Converter
  • Miniature Size (1.40”L x 1.10”W x 0.50”H)

  • Easy to Use, No External ComponentRequired

  • Excellent Load and Line Regulation

  • Extremely Low Quiescent Current

  • Miniature PC Board Mountable Package

  • Low Ripple and EMI/RFI

  • High Impedance Programming Input (>75kΩ)

  • Wide Operating Temp Range (-40°C to +60°C)

hvm
Miniature High Voltage DC to DC Converter
  • Miniature Size (1.75”L x 1.10”W x 0.50”H)

  • Easy to Use, No External Components Required

  • Excellent Load and Line Regulation

  • Extremely Low Quiescent Current

  • Miniature PC Board Mountable Package

  • Low Ripple and EMI/RFI

  • High Impedance Programming Input (>75kΩ)

  • Wide Operating Temp Range (-40°C to +60°C)


hvm
10kV High Voltage Opto-Relay
  • Easy to Use

  • No External Components Required

  • Internal Current Limiting Resistors

  • Small Footprint

  • ±10kV Voltage Rating

  • Fast Response

  • Miniature PC Board Mountable Package

  • Wide Operating Temp Range (-40°C to +85°C)

HVM
10kV High Voltage Opto-Relay
  • Easy to Use

  • No External Components Required

  • Internal Current Limiting Resistors

  • Small Footprint

  • ±10kV Voltage Rating

  • Fast Response

  • Miniature PC Board Mountable Package

  • Wide Operating Temp Range (-40°C to +85°C)

hvm
15kV High Voltage Opto-Coupler
  • Easy to Use

  • No External Components Required

  • Internal Current Limiting Resistors

  • Small Footprint

  • 15kV Reverse Voltage Rating

  • Fast Response

  • Miniature PC Board Mountable Package

  • Wide Operating Temp Range (-40°C to +85°C)


HVM

HVM VXI 20K-35G

High Impedance High Voltage Meter



We are proud to announce the newest addition to our product line: The VXI 20K-35G. The VXI is an ultra high impedance high voltage meter. It measures up to ±20kV with negligible loading (greater then 35 giga-ohms). The VXI is the first in our new category of High Voltage Instrumentation.
