Behlke电源

Behlke Power Electronics GmbH 30年以来，主要从事脉冲电力电子和高压半导体堆的设计。功率MOSFET来到市场，全新的材料可能是另一个革命性的新产品的完美基础。实验这种新材料，并在研究所提出了快速高压推挽开关，使研究人员能够进行离子解吸过程的TOF-MS特殊实验。

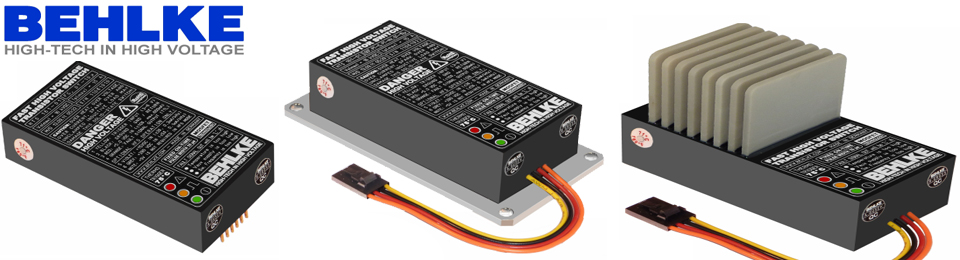

Switch Model
[sorted by voltage]

Description / Comment
●?Preferred stock type?○?Lead time > 6 weeks? X Not for new development?

Max. Voltage
[kV]

Peak Current
[A]

Peak Power
? [MW]

? On-?? Time
[μs]

Housing Dimensions
[mm3]

 Drawing
(PDF)
HTS 40-1000-SCR ● Sync. I/O for parallel connection.
4
10000
40
35…∞
89 x 64 x 31
 request
HTS 60-1000-SCR ● Sync. I/O for parallel connection.
6
10000
60
35…∞
122 x 64 x 31
 request
HTS 60-100-SCR ● Tubular housing with HV pigtails. Cooling options not available.
6.4
1000
6.4
35…∞
135 x 20 x 20
 request
HTS 60-200-SCR ● LED indicators. Very compact design - CF options partly not applicable!
6.4
2000
12.8
35…∞
80 x 38 x 25
 PDF
HTS 80-200-SCR ● Sync. I/O for parallel connection.
8
2000
16
35…∞
89 x 64 x 31
 request
HTS 80-500-SCR ● Sync. I/O for parallel connection.
8
5000
40
35…∞
89 x 64 x 31
 PDF
HTS 80-1000-SCR ● Sync. I/O for parallel connection.
8
10000
80
35…∞
153 x 64 x 31
 PDF
HTS 100-1600-SCR ● LED indicators & Sync. I/O for parallel connection
10
16000
160
35…∞
179 x 103 x 35
 request
HTS 120-200-SCR ● Sync. I/O for parallel connection.
12
2000
24
35…∞
122 x 64 x 31
 request
HTS 120-500-SCR ● Sync. I/O for parallel connection.
12
5000
60
35…∞
122 x 64 x 31
 PDF

Model?[sorted by
dimensions]

Description / Comment
●?Preferred stock type?○?Limited stock? X Not? for new development

Max. Voltage
[kV]

Peak Current
[A]

 Peak Power
[MW]

On-Resist.
? [Ω]

On-Time
[ns]

Dimensions
[mm3]

 Drawing
(PDF)
HTS 40-06 ● Very compact and lightweight design. LED indicators. 1 ns rise time.?
4
60
0.24
3.4
100
80 x 38 x 25
PDF
HTS 50-05 ● Very compact and lightweight design. LED indicators. 1 ns rise time.?
5
50
0.25
4.8
100
80 x 38 x 25
PDF
HTS 60-04 ● Very compact and lightweight design. LED indicators.?
6.4
40
0.256
8.8
100
80 x 38 x 25
PDF
HTS 80-03 ● Very compact and lightweight design. LED indicators.?
8
30
0.24
16
100
80 x 38 x 25
PDF
HTS 160-01 ● Very compact and lightweight design. LED indicators.?
16
15
0.24
64
100
80 x 38 x 25
PDF
HTS 20-08 x ?
2
80
0,16
1
150
70 x 50 x 27
PDF
HTS 30-06 x ?
3
60
0,18
3
150
70 x 50 x 27
PDF
HTS 50-06 x ?
5
60
0.3
5
150
70 x 50 x 27
PDF

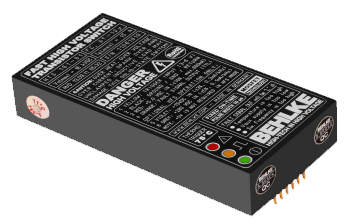

Model?[sorted by dimensions]

Description / Comment
●?Preferred stock type?○?Limited stock? X Not for new development

 Drawing
(PDF)

Dimensions
[mm3]

Voltage
[kV]

Pk. Current
[A]

On-Resist.
? [Ω]

On-Time
[ns]
HTS 11-14-C ● COMPACT SERIES? ? PDF 79 x 38 x 17 1.2
140
 1.2 50…∞
HTS 21-07-C ● COMPACT SERIES? ? PDF 79 x 38 x 17 2.4
70
 2.4 50…∞
HTS 31-06-C ● COMPACT SERIES? ? PDF
79 x 38 x 17
3
60
5
50…∞
HTS 31-05-C ● COMPACT SERIES.? Very Low Natural Capacitance?CN? PDF
79 x 38 x 17
3.6
50
7
50…∞
HTS 41-05-C ● COMPACT SERIES? ? PDF
79 x 38 x 17
4.8
50
6
50…∞
HTS 61-03-C ● COMPACT SERIES? ? PDF
79 x 38 x 17
6
30
10
50…∞
HTS 71-02-LC-C ● COMPACT SERIES.? Very Low Natural Capacitance?CN PDF
79 x 38 x 17
7.2
25
14
50…∞
HTS 91-02-C ● COMPACT SERIES? ? PDF
79 x 38 x 17
9.6
25
12
50…∞
HTS 121-01-C ● COMPACT SERIES? ? PDF
79 x 38 x 17
12
15
48
50…∞
HTS 181-01-C ● COMPACT SERIES PDF
79 x 38 x 17
18
12
60
50…∞
HTS 61-06-C ● COMPACT SERIES? ? PDF
175 x 50 x 30
6
64
5.2
75…∞
HTS 101-02-LC-C ● COMPACT SERIES.? Very Low Natural Capacitance?CN? PDF
125 x 38 x 17
10.8
25
21
80…∞
HTS 91-05-C ● COMPACT SERIES? ? PDF
125 x 38 x 17
9.6
50
6
80…∞
HTS 121-03-C ● COMPACT SERIES? ? PDF
175 x 50 x 30
12
32
21
75…∞
HTS 181-02-C ● COMPACT SERIES.? With HV pigtails (option PT-HV)? PDF
175 x 50 x 30
18
24
36
75…∞
HTS 241-01-C ● COMPACT SERIES.? With HV pigtails (option PT-HV)? PDF
175 x 50 x 30
24
15
120
75…∞
HTS 361-01-C ● COMPACT SERIES.? With HV pigtails (option PT-HV)? ? PDF
175 x 50 x 30
36
12
120
75…∞
Switch Model?
[sorted by voltage]

Description / Comment
● Preferred stock type? ○ Limited stock??X?Not for new development

Voltage
[kV]

Pk. Current
[A]

On-Resist.
[Ω]

On-Time
[ns]

 Dimensions
L x W x H
[mm3]		 Drawing
(PDF)
HTS 11-07-HB-C ● Designed for PCB assembly. Other housings are optionally available. 2 x 1.2 2 x 70 2 x 1.2 50…∞ 79 x 38 x 17 PDF
HTS 21-07-HB-C ● Designed for PCB assembly. Other housings are optionally available. 2 x 2.4 2 x 70 2 x 2.4 50…∞ 125 x 38 x 17 request
HTS 31-03-HB-C ● Designed for PCB assembly. Other housings are optionally available. 2 x 3 2 x 30 2 x 5 50…∞ 79 x 38 x 17 PDF
HTS 31-13-HB-B-C ● ?Designed for PCB assembly. Other housings are optionally available. Trench FET.??? 2 x 3.9 2 x 130 2 x 0.5 150…∞ 79 x 38 x 17 PDF
HTS 41-02-HB-LC-C ● Designed for PCB assembly. Other housings are optionally available. Low natural capacitance. 2 x 4.8 2 x 25 2 x 7 50…∞ 79 x 38 x 17 PDF
HTS 61-01-HB-C ● Designed for PCB assembly. Other housings are optionally available. 2 x 6 2 x 15 2 x 22 50…∞ 79 x 38 x 17 PDF
HTS 61-03-HB-C ● Designed for PCB assembly. Other housings are optionally available. 2 x 6 2 x 30 2 x 10 70…∞ 125 x 38 x 17 request
HTS 71-13-HB-B-C ● Designed for PCB assembly. Other housings are optionally available. Trench FET.?? 2 x 7.8 2 x 130 2 x 1 180…∞ 125 x 38 x 17 request
HTS 91-01-HB-C ● Designed for PCB assembly. Other housings are optionally available. 2 x 9 2 x 12 2 x 42 50…∞ 79 x 38 x 17 PDF

Model?[sorted by
dimensions]

Description / Comment
●?Preferred stock type?○?Limited stock? X Not for new development

 Drawing
(PDF)

Dimensions
[mm3]

Voltage
[kV]

Pk. Current
[A]

HV Pulse Width
[ns]
● Very compact.?Polarity reversal manually by earthing plug. 15 nF buffer capacitor. request
170 x 110 x 45
2 x 6
2 x 15
100…∞
● Very compact.?Polarity reversal manually by earthing plug. 15 nF buffer capacitor. request
170 x 110 x 45
2 x 3
2 x 30
100…∞
● Very compact.?Polarity reversal manually by earthing plug. 15 nF buffer capacitor. request
170 x 110 x 45
2 x 3
2 x 60
100…∞
● Very compact.?Polarity reversal manually by earthing plug. 15 nF buffer capacitor. request
210 x 110 x 45
2 x 10
2 x 15
100…∞
● Very compact.?Polarity reversal manually by earthing plug. 15 nF buffer capacitor. request
210 x 110 x 45
2 x 6
2 x 30
100…∞
● Very compact.?Polarity reversal manually by earthing plug. 15 nF buffer capacitor. request
210 x 110 x 45
2 x 10
2 x 30
100…∞
● Very compact.?Polarity reversal manually by earthing plug. 15 nF buffer capacitor. request
210 x 110 x 45
2 x 6
2 x 60
100…∞

Model?[sorted by
dimensions]

Description / Comment
●?Preferred stock type?○ Limited stock? X Not for new development

Dimensions
[mm3]

Voltage
[kV]

Pk. Current
[A]
FDA 60-180 ● Especially for HTS 61-40, HTS 61-240-SI and 61-160-FI
78 x 76 x 25
6
1800
FDA 60-240 ● Especially for HTS 61-40, HTS 61-240-SI and 61-160-FI
102 x 76 x 25
6
2400
FDA 100-75 ● ?
84 x 35 x 30
10
750
FDA 100-150 ● ?
84 x 35 x 30
10
1500
FDA 160-75 ● ?
84 x 35 x 30
16
750
FDA 160-150 ● ?
84 x 35 x 30
16
1500
FDA 200-75 ● ?
101 x 35 x 30
20
750
FDA 200-150 ● ?
101 x 35 x 30
20
1500
FDA 240-75 ● ?
116 x 35 x 30
24
750
FDA 240-150 ● ?
116 x 35 x 30
24
1500
FDA 300-75 ● ?
141 x 35 x 30
30
750
FDA 300-150 ● ?
141 x 35 x 30
30
1500
FDA 320-75 ● ?
152 x 35 x 30
32
750
FDA 320-150 ● ?
152 x 35 x 30
32
1500
FDA 350-150 ● ? 205 x 35 x 30 35 1500
